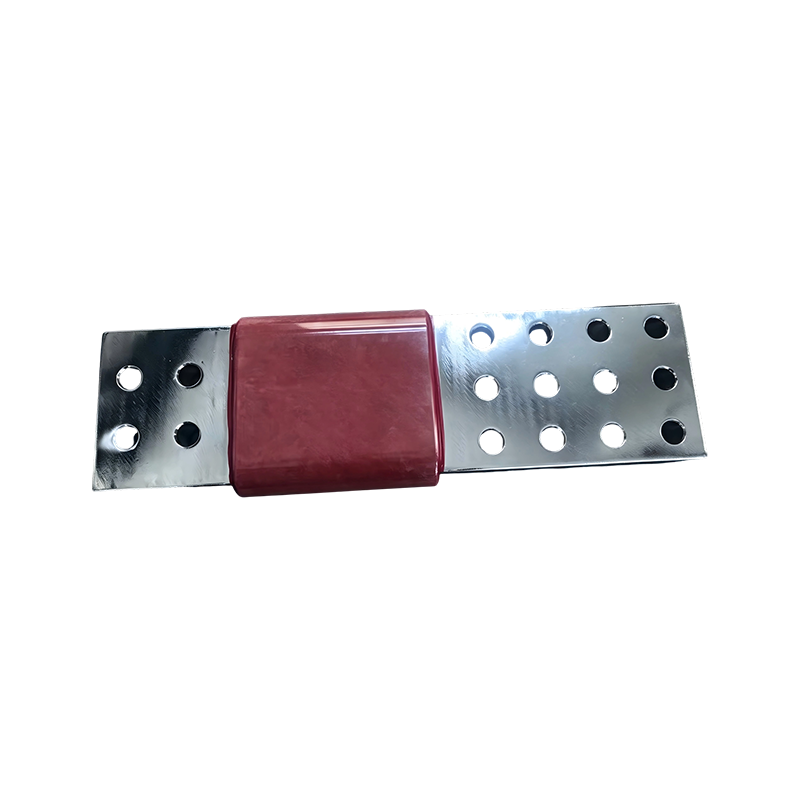

A low-voltage conductive bar is engineered for the valve-side outgoing lines of large rectifier transformers, where operating conditions call for very high current at comparatively low voltage.
- Core function: provides a stable, low-resistance current path at the outgoing terminal, minimizing voltage drop and energy loss even under continuous heavy-current operation.
- Material control: produced from high-purity copper stock with tightly controlled cross-sectional dimensions, ensuring uniform current density across the bar and preventing localized hot spots.
- Thermal behavior: the consistent cross-section and material purity reduce resistive heating, keeping bar temperature within safe limits during sustained full-load operation over long duty cycles.
- Contact reliability: surface treatment at bolted joint locations supports low, stable contact resistance over time, reducing the risk of joint loosening or oxidation-related performance loss.
- Manufacturing precision: dimensional tolerances are held tightly through the production process so each bar mates precisely with mating busbars and terminal blocks without additional on-site fitting.
- Target applications: widely used in high-current rectifier transformers that serve the electrolytic non-ferrous metal industry and chemical processing plants, where transformer outputs regularly reach very high current levels.
- Operational value: dependable, low-loss current transmission at the outgoing terminal is essential to production continuity in these industries, where an unplanned outage can halt an entire electrolytic or chemical process line.
By combining high-purity copper, precise dimensional control, and reliable contact surfaces, this low-voltage conductive bar delivers the consistent electrical performance that large rectifier transformer systems require, supporting stable, uninterrupted operation in some of the most current-intensive industrial environments.
Every production batch is checked for cross-sectional consistency and surface finish before shipment, so downstream heating and connection performance stay predictable across large orders. Custom bar lengths, hole patterns, and terminal configurations can be produced to match specific rectifier transformer designs, allowing this conductive bar to be integrated directly into existing outgoing-line assemblies without additional on-site machining. Technical documentation and dimensional drawings are provided with every order, helping engineering teams verify fit and current-carrying capacity before the bar is installed into the finished transformer assembly.
Jiangsu Penglong Electric Engineering Co., Ltd. is a specialized manufacturer integrating R&D, design, and production of power transmission components, high-current conductor systems, and industrial electrical connection products.
With extensive industry experience, the company specializes in high-current conductive connections, copper-aluminum transition solutions, transformer components, and industrial furnace conductor systems. Supported by a complete manufacturing system and modern equipment, Penglong offers customized and large-scale production.
Its products are widely used in transformers, industrial furnaces, electrolysis equipment, switchgear, and power distribution systems. Main products include busbars, conductive rods, copper-aluminum connectors, terminals, flexible connectors, water-cooled cables, and other custom conductive components.
